Automated packaging/sorting line – Malfini

For MALFINI, a leading supplier of promotional textiles and workwear, we supplied a fully automated sorting/packaging line.

TMT’s sophisticated technology ensures the operation of the AutoStore robotic warehouse, the entire logistics from automated picking of the selected box to its closing, labelling and delivery of the order to the dispatch gravity slides.

Investing in automated warehouse and conveyor technology will help make better use of existing warehouse space, speeding up and streamlining order picking processes to improve service for e-commerce customers.

Automated sorting/packaging line

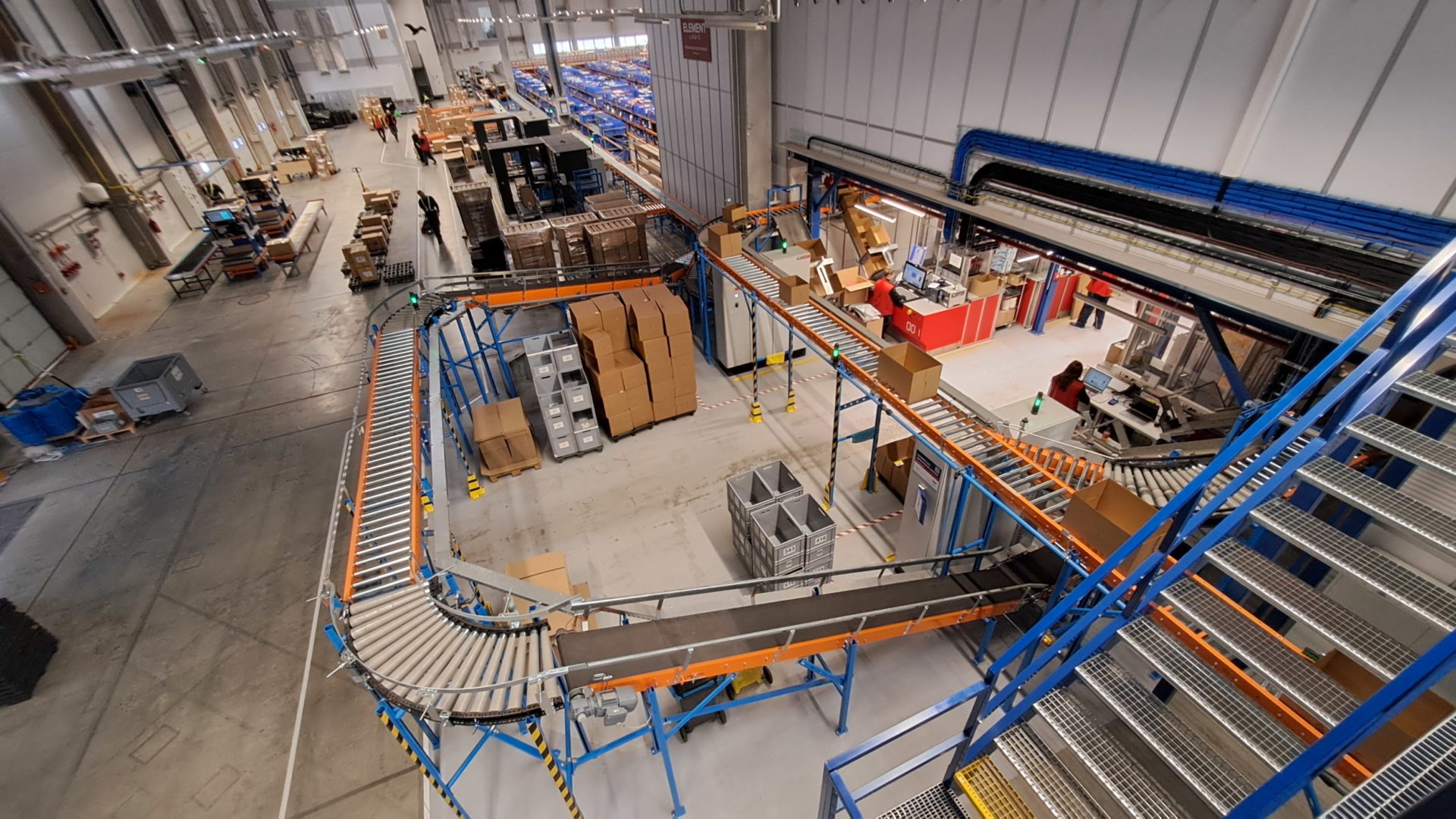

The line is designed to distribute empty cartons to the individual picking ports of the AutoStore warehouse. After being placed in the cartons, the goods are transported to the carton packing section where the cartons are automatically sealed. The packages are then automatically labelled for dispatch and sorted to the individual dispatch locations.

The line is divided into 4 areas

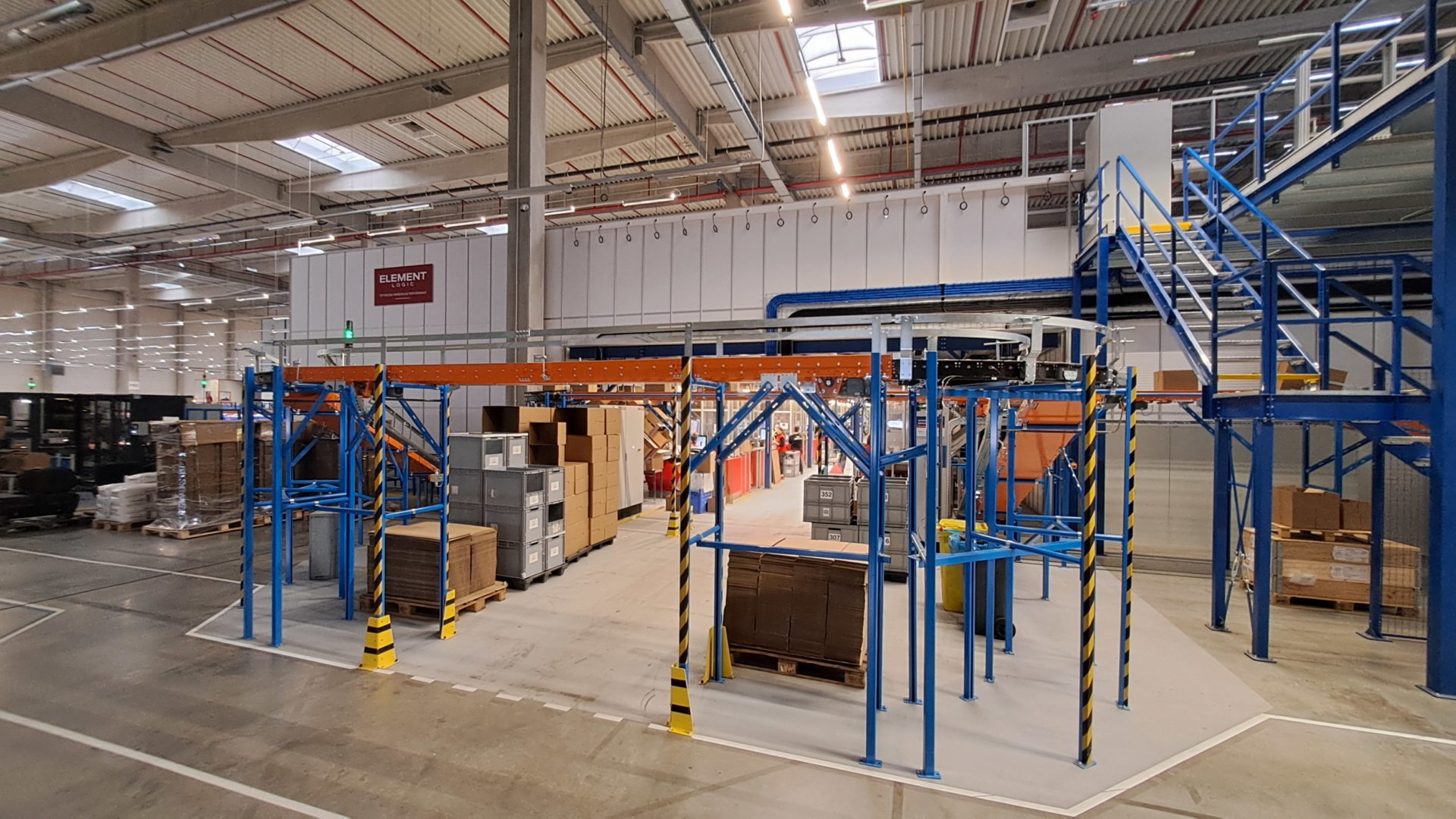

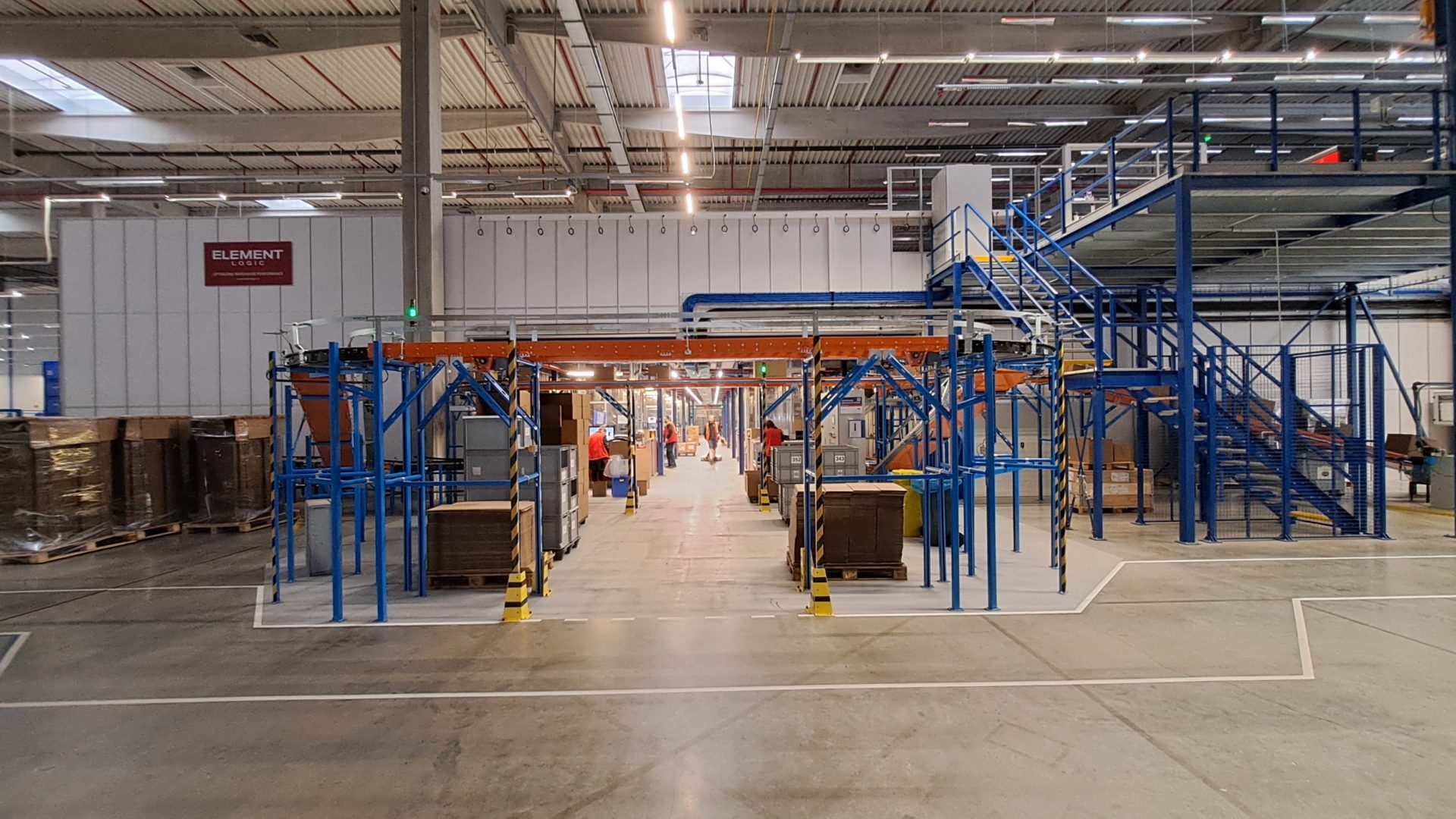

• Stacking, transport and distribution of different types of cartons to the individual picking ports of the AutoStore warehouse

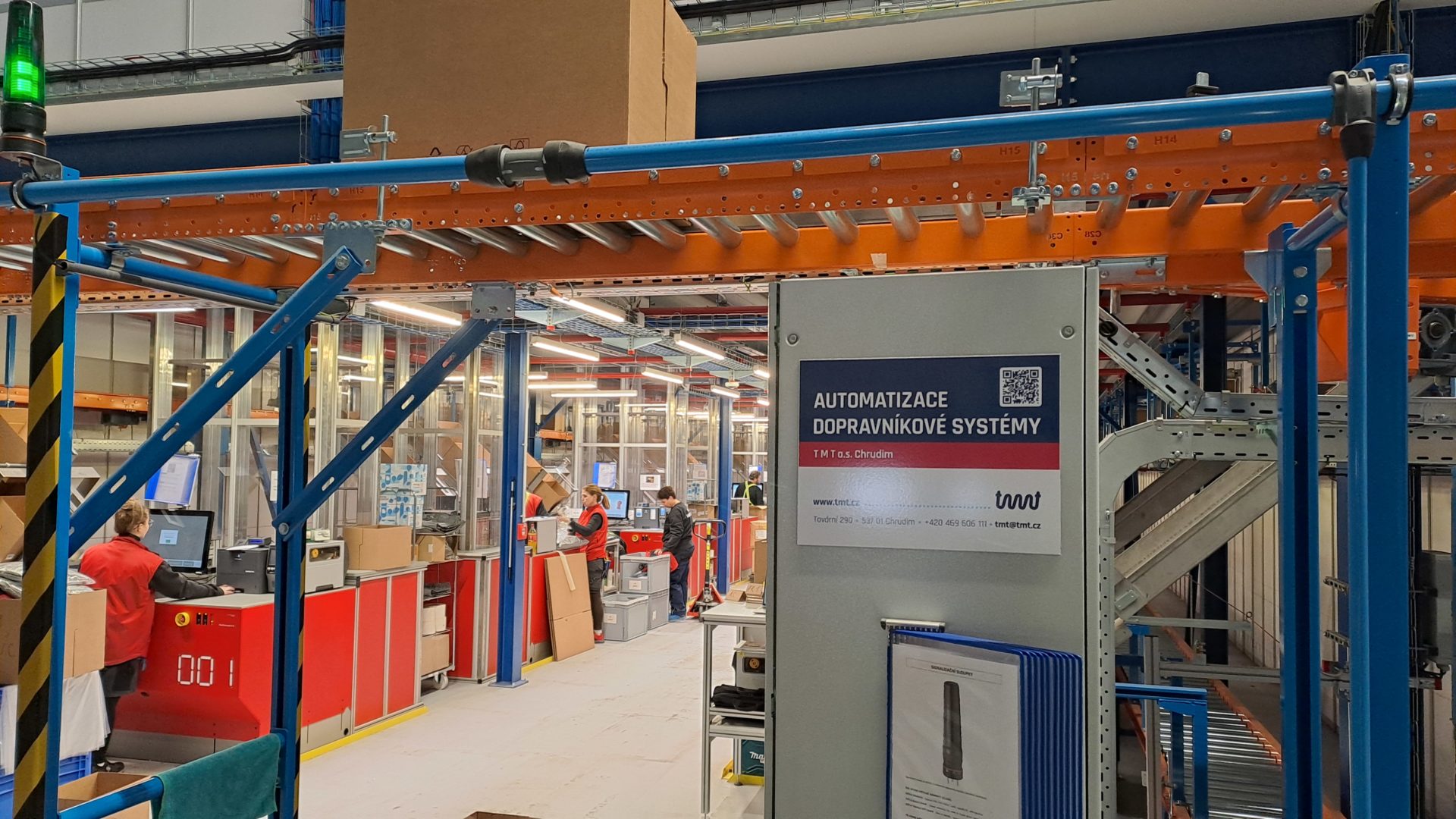

• Two lines of packing of goods taken out of the AutoStore
• Automatic closing of carton boxes, including transport of cartons with goods from the warehouse

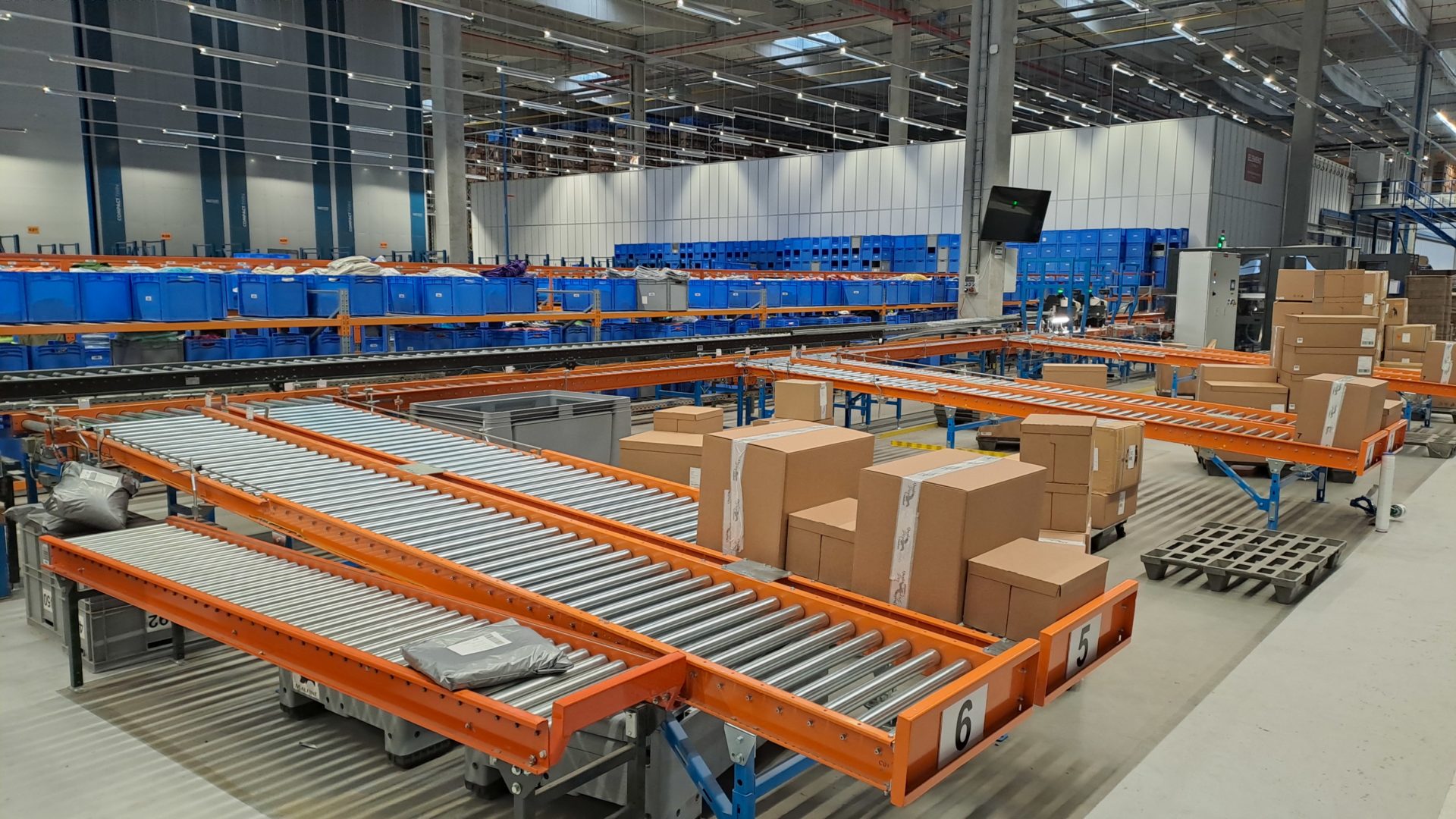

• Sorting of dispatched orders including automatic label application

Parts of the line

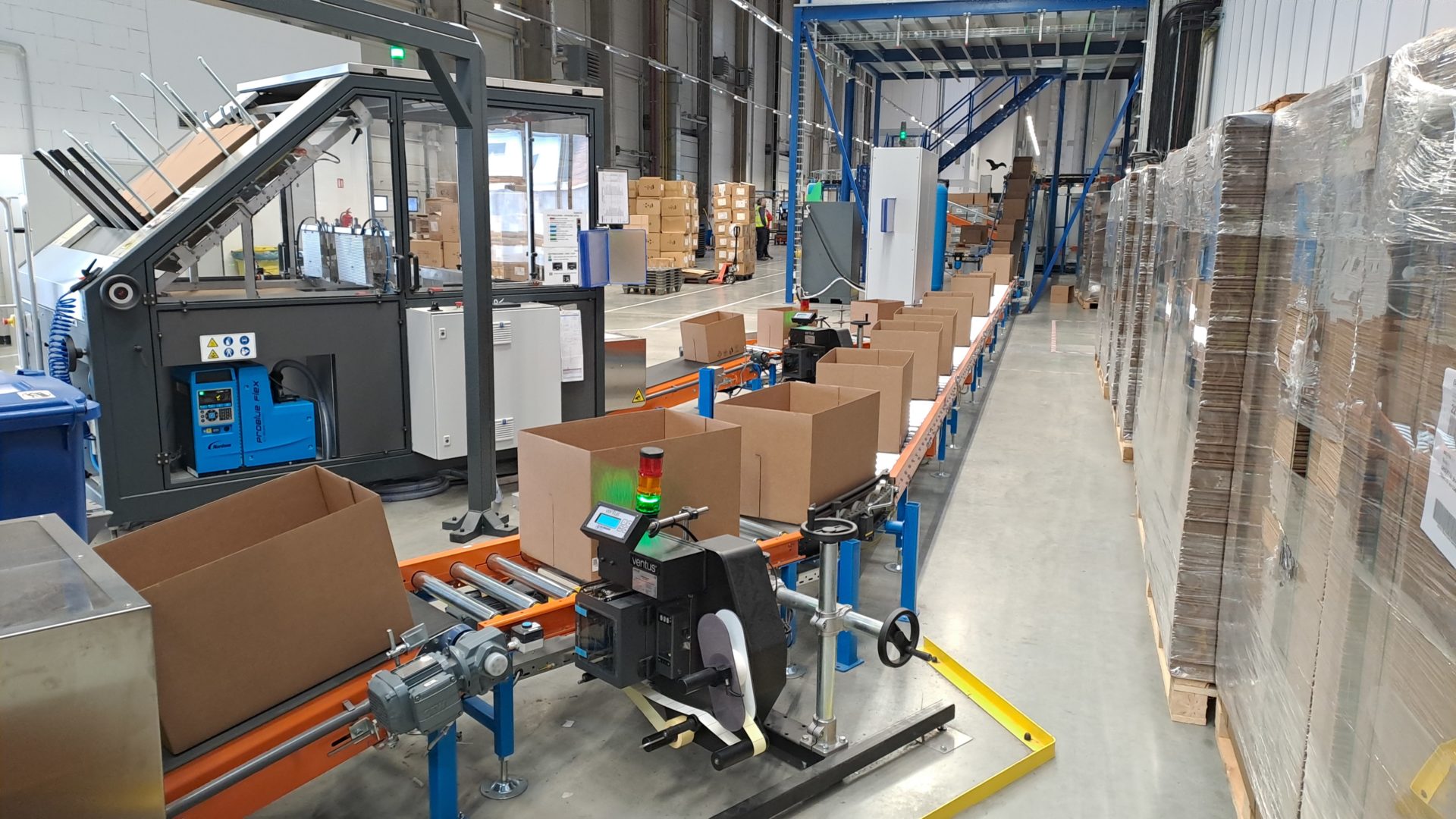

• Carton Box Folding Equipment

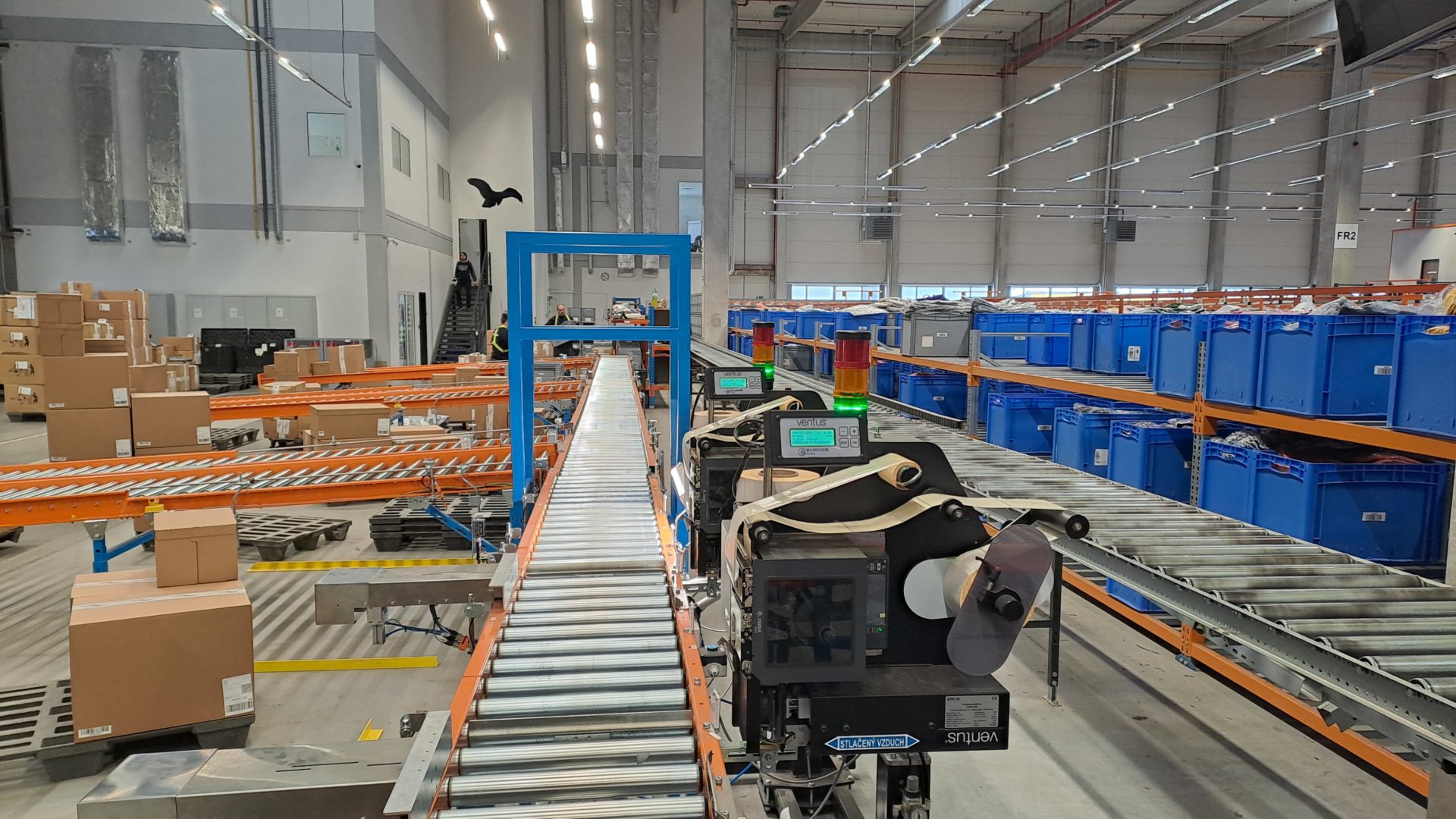

• Input labeling device (applicator)

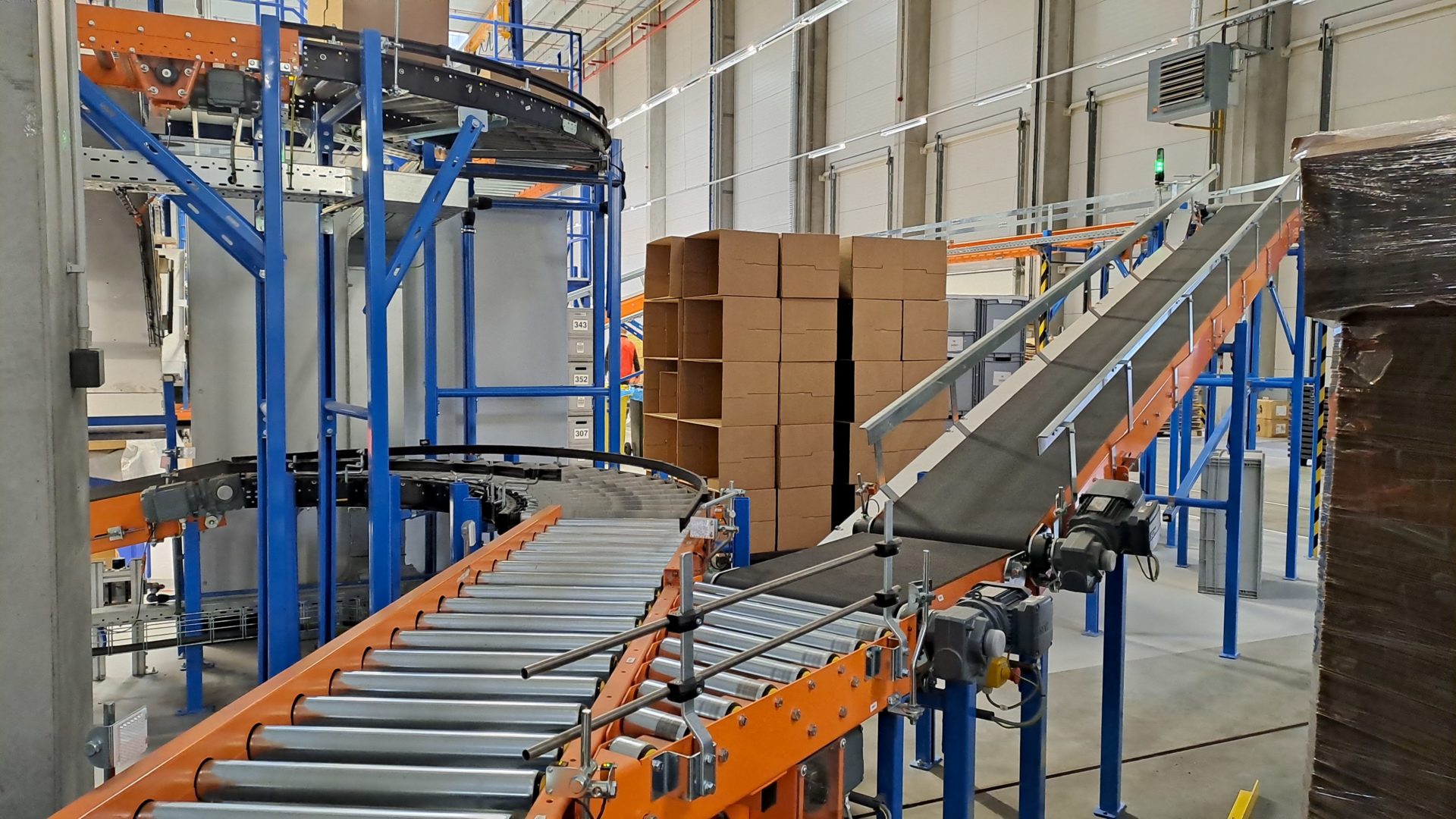

• Powered roller conveyors
• Belt conveyors, shifters
• Gravity roller conveyors, roller curves

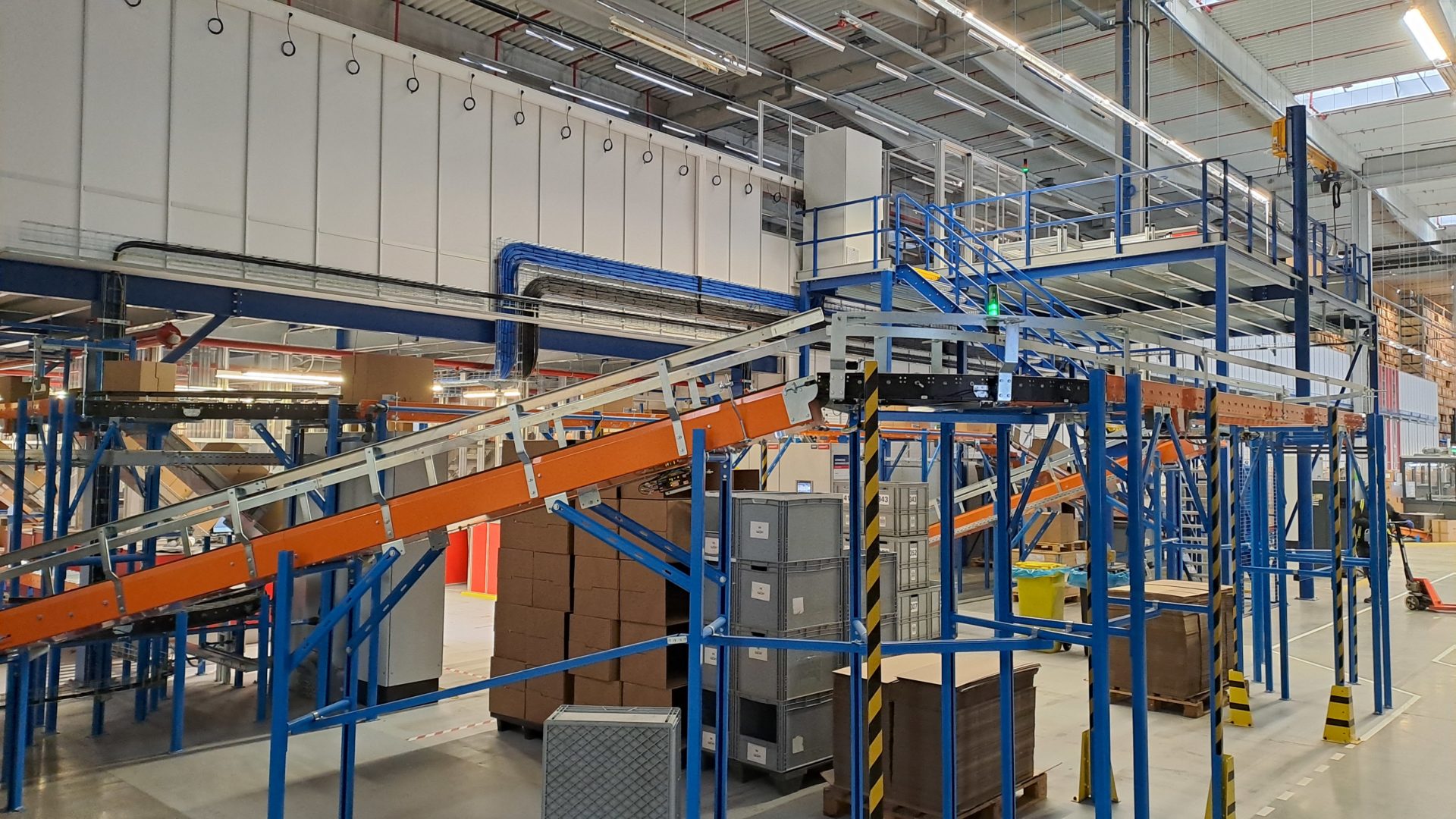

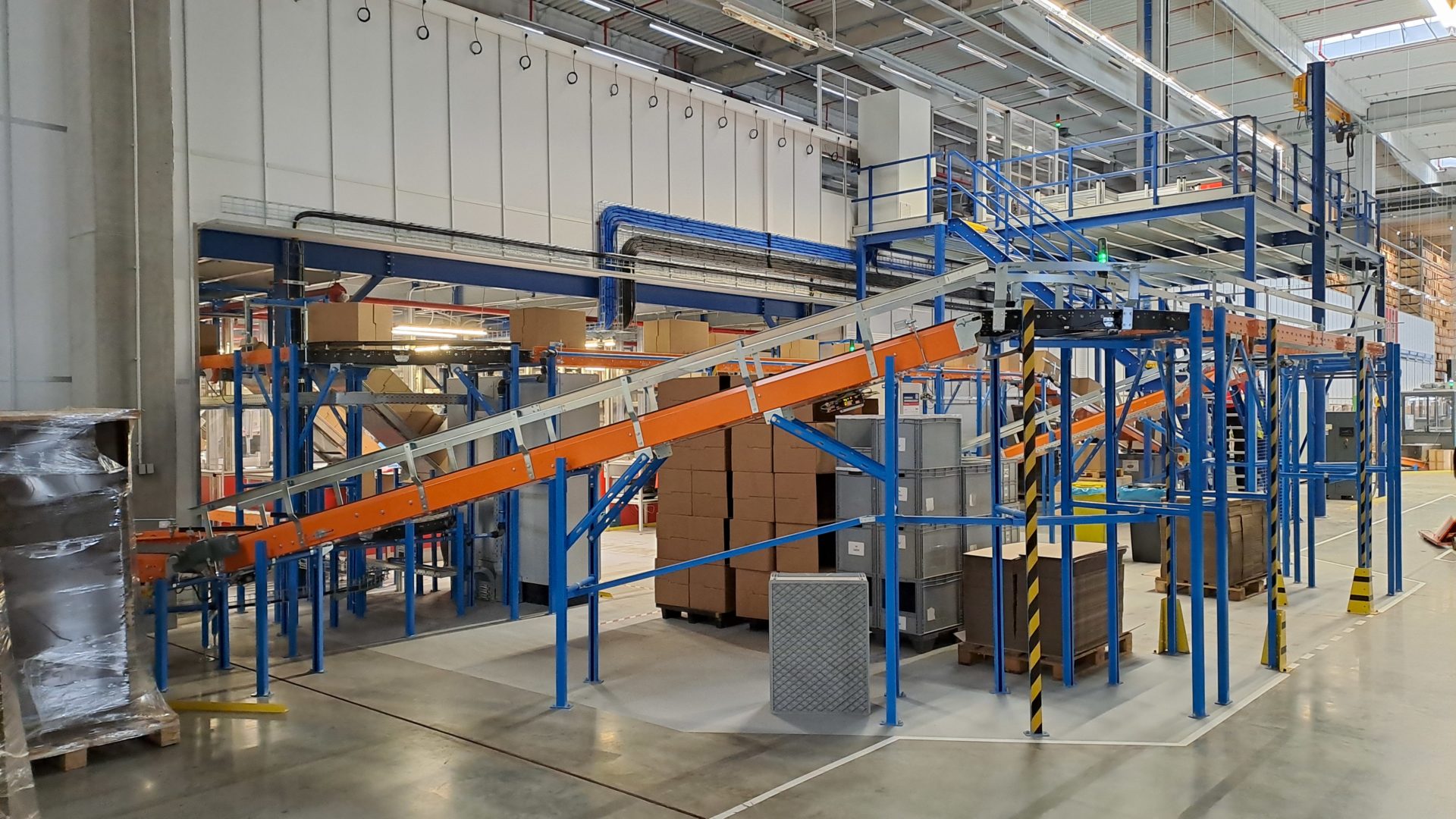

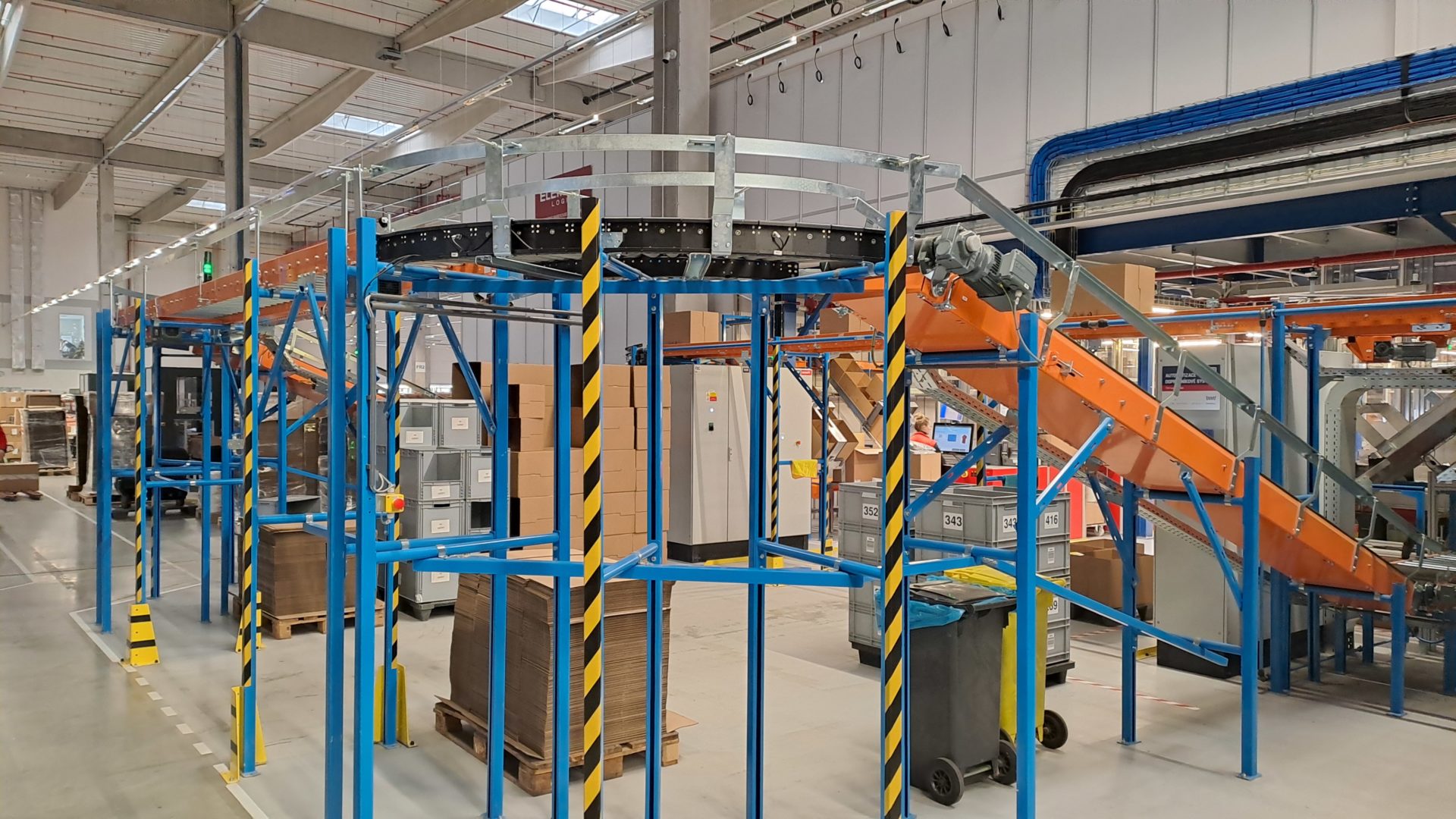

• Horizontal and inclined belt conveyors
• Output labelling equipment

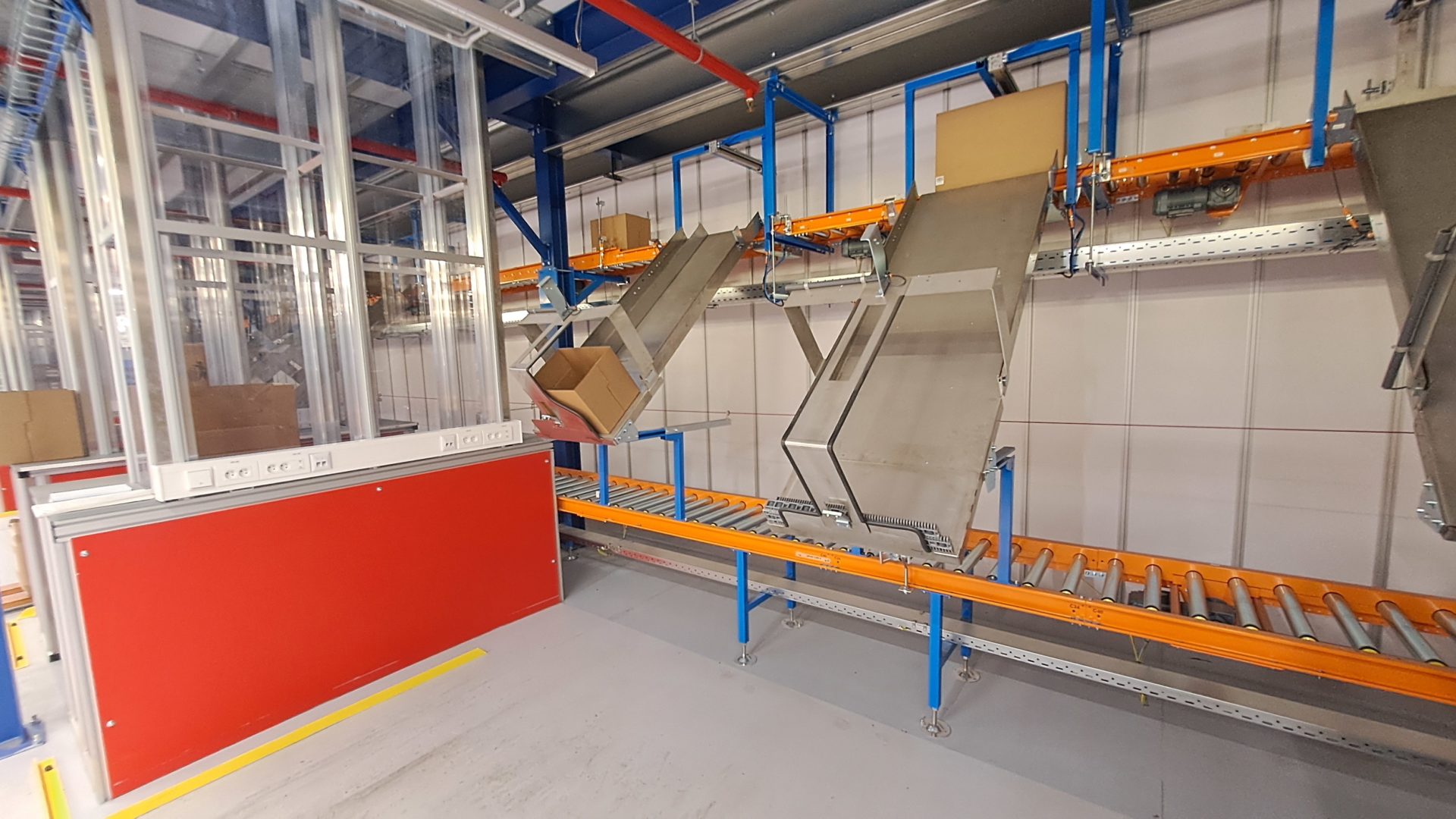

• Stainless steel chutes

Specification of transported goods and performance parameters of the line

Transported loads

• cardboard boxes

Dimnsions of each package:

• 600 x 400 x 400 mm (length x width x heigh)
• 400 x 300 x 300 mm
• 600 x 400 x 420 mm – used cartons, CBL

Package weight:

• cca – 15 kg/pcs, max. 30 kgs/pcs

Conveyor line performance:

• 600 pcs/hour (sorting input)

Service

We provide both regular and emergency service to the line in 24/7 mode.
